Modern semiconductor manufacturing requires unprecedented levels of precision, cleanliness, thermal stability, and reliability. As chip architectures continue to evolve toward smaller nodes, higher power density, and advanced packaging technologies, conventional metallic materials increasingly face limitations in process environments involving plasma exposure, ultra-high vacuum, aggressive chemicals, and extreme temperatures.

Structural ceramics have therefore become indispensable materials in semiconductor equipment. Their unique combination of mechanical strength, wear resistance, thermal stability, corrosion resistance, and electrical properties makes them essential for wafer processing, handling, deposition, etching, and inspection systems.

This article provides an in-depth analysis of structural ceramics used in semiconductor manufacturing, including material types, critical properties, equipment applications, selection criteria, and future industry trends.

What Are Structural Ceramics?

Structural ceramics are engineered ceramic materials primarily designed for mechanical and functional performance under demanding operating conditions. Unlike decorative or traditional ceramics, advanced structural ceramics possess highly controlled microstructures and exceptional material properties.

In semiconductor environments, structural ceramics are expected to provide:

• High dimensional accuracy
• Excelente estabilidad térmica
• Resistencia a la erosión por plasma
• Baja generación de partículas
• Chemical inertness
• Alta pureza
• Electrical insulation or conductivity depending on application
• Long-term reliability under vacuum conditions

As semiconductor processes become increasingly sensitive to contamination, even microscopic material degradation can affect wafer yield.

Why Structural Ceramics Matter in Semiconductor Manufacturing

Semiconductor equipment operates under conditions far more severe than conventional industrial systems.

Typical environments include:

Extreme temperature cycles

• Rapid heating and cooling
• Temperatures from cryogenic conditions to over 1600°C
• Thermal shock stress

Aggressive chemical exposure

• Acids
• Alkalis
• Reactive gases
• Cleaning chemistries

Plasma processing

Etching and deposition chambers use energetic plasmas capable of damaging conventional materials.

Ultra-clean environments

Particles measured in nanometers may significantly impact device performance.

Vacuum operation

Many semiconductor systems operate in:

• High vacuum
• Ultra-high vacuum
• Controlled atmosphere environments

Structural ceramics outperform metals in many of these situations because they resist corrosion, deformation, oxidation, and contamination.

Major Structural Ceramic Materials Used in Semiconductor Equipment

Different ceramic materials are selected according to process requirements.

Carburo de silicio (SiC)

Silicon carbide is among the most important semiconductor structural ceramics.

Key properties:

• Extremely high hardness
• Alta conductividad térmica
• Excelente resistencia al desgaste
• Resistencia del plasma
• Estabilidad a altas temperaturas
• Baja dilatación térmica

Applications:

• Soportes para obleas
• Mandriles de vacío
• susceptors
• process trays
• robot arms
• wafer support structures

Reaction-bonded SiC and recrystallized SiC are commonly used in thermal processing systems.

Ventajas:

• Excelente estabilidad dimensional
• Reducción de la contaminación por partículas
• Larga vida útil

Alumina (Al2O3)

Alumina remains one of the most widely used ceramic materials due to cost-performance balance.

Typical properties:

• Aislamiento eléctrico
• Gran dureza
• Good corrosion resistance
• Low cost
• High purity availability

Applications:

• Ceramic insulators
• nozzles
• guide components
• chamber parts
• positioning components

Purity levels often exceed:

99.5%

Ultra-high purity grades may exceed:

99.9%

Higher purity reduces contamination risk.

Zirconia (ZrO2)

Zirconia provides exceptional fracture toughness.

Characteristics:

• High bending strength
• Wear resistance
• Low thermal conductivity
• Excellent crack resistance

Applications:

• precision wear components
• bearings
• valve parts
• positioning systems

Transformation toughening mechanisms provide improved resistance to mechanical failure.

Nitruro de aluminio (AlN)

Aluminum nitride is increasingly important because of its thermal conductivity.

Properties:

• Alta conductividad térmica
• Aislamiento eléctrico
• thermal expansion close to silicon

Applications:

• electrostatic chuck substrates
• thermal management components
• semiconductor heaters

AlN combines heat transfer capability with electrical isolation.

Quartz and Fused Silica

Although technically different from engineering structural ceramics, these materials remain essential.

Las aplicaciones incluyen:

• process tubes
• wafer boats
• diffusion equipment
• optical components

Ventajas:

• high purity
• low thermal expansion
• transparency

Key Applications of Structural Ceramics in Semiconductor Equipment

Structural ceramics appear throughout semiconductor production lines.

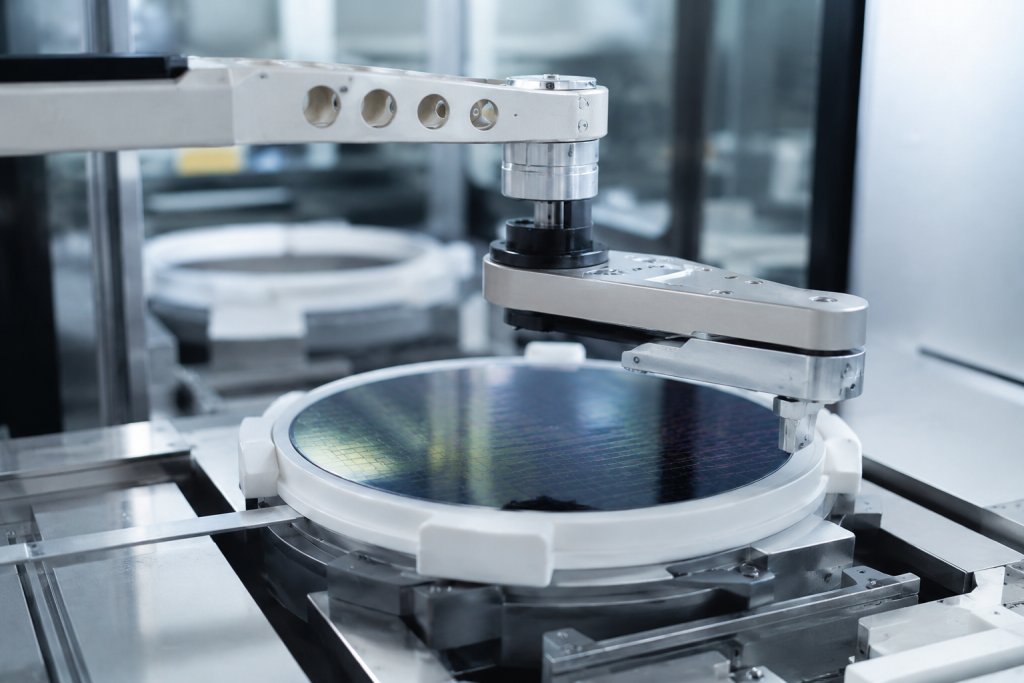

Wafer Handling Systems

Wafer transport systems require:

• dimensional precision
• low particle generation
• wear resistance

Components:

• robotic end effectors
• vacuum arms
• guide rails
• support pins

Ceramics reduce abrasion and contamination.

Electrostatic Chucks

Electrostatic chucks secure wafers during processing.

Requirements:

• controlled electrical properties
• thermal uniformity
• plasma resistance

Common materials:

• AlN
• SiC
• alumina composites

Performance directly influences process uniformity.

Componentes de equipos de grabado

Plasma etching chambers expose materials to energetic ions and reactive species.

Ceramic components include:

• focus rings
• gas distribution plates
• chamber liners
• edge rings

SiC and high-purity alumina dominate these applications.

CVD and Epitaxy Systems

Chemical vapor deposition processes involve elevated temperatures.

Ceramic applications:

• susceptors
• process trays
• wafer carriers
• thermal shields

Thermal stability becomes critical.

CMP Systems

Chemical mechanical polishing requires components resistant to both chemistry and abrasion.

Applications:

• wear rings
• precision bearings
• fluid handling parts

Comparison of Major Semiconductor Structural Ceramics

Propiedad	SiC	Alumina	Zirconia	AlN
Dureza	Muy alta	Alta	Medio	Medio
Conductividad térmica	Excelente	Low	Low	Excelente
Aislamiento eléctrico	Moderate	Excelente	Excelente	Excelente
Resistencia al plasma	Excelente	Good	Moderate	Good
Fracture Toughness	Moderate	Moderate	Excelente	Moderate
Resistencia al desgaste	Excelente	Good	Excelente	Moderate
Resistencia al choque térmico	Excelente	Moderate	Good	Good

No single ceramic material solves every engineering challenge.

Selection depends on:

• process environment
• temperature
• plasma intensity
• mechanical load
• contamination requirements
• equipment architecture

Manufacturing Challenges for Semiconductor Structural Ceramics

Producing semiconductor-grade ceramics is significantly more complex than conventional industrial ceramics.

Challenges include:

Ultra-high purity requirements

Trace contamination can affect chip yield.

Impurities often must remain below ppm levels.

Precision machining

Tolerances frequently reach:

±0.005 mm

or tighter.

Processes include:

• CNC machining
• precision grinding
• lapping
• pulido

Surface quality control

Surface defects generate particles.

Critical parameters include:

• surface roughness
• flatness
• edge quality

Some applications require sub-micron flatness.

Complex geometries

Modern semiconductor equipment increasingly uses customized components:

• vacuum channels
• microstructures
• multi-functional assemblies

Advanced ceramic machining technologies are essential.

Emerging Trends in Semiconductor Structural Ceramics

The industry continues evolving rapidly.

Several trends are reshaping ceramic development:

Larger wafer formats

As equipment transitions toward larger wafers and advanced packaging, larger ceramic structures become necessary.

Higher plasma density

Future etching technologies require materials with improved plasma durability.

Hybrid ceramic materials

Composite systems combining:

• SiC
• AlN
• ceramic coatings

are increasingly used.

Additive manufacturing

3D-printed ceramics may enable:

• lightweight structures
• complex channels
• reduced assembly requirements

Ingeniería avanzada de superficies

Surface treatments can improve:

• contamination resistance
• wear behavior
• process life

Conclusión

Structural ceramics have become fundamental enabling materials in semiconductor manufacturing equipment. Their exceptional combination of thermal stability, wear resistance, corrosion resistance, purity, and mechanical performance allows them to operate in environments beyond the capabilities of conventional materials.

As semiconductor technologies continue advancing toward smaller process nodes and increasingly demanding manufacturing conditions, structural ceramics will play an even greater role in improving process stability, yield, and equipment reliability.

Future developments in ceramic materials, manufacturing precision, and functional integration will likely determine the next generation of semiconductor equipment innovation.
